Solid State High Freqency Welding Machine
Solid State High Frequency Welding Machine is a kind of induction heating machine specially designed for low carbon steel pipe seam welding. It adopts high power components of US IR IRFP460 MOSFET and Germany IXYS Company DSEI60-06A rapid recovery diode. The high power capacitor C and inductor...
Description
Solid State High Frequency Welding Machine is a kind of induction heating machine specially designed for low carbon steel pipe seam welding.
It adopts high power components of US IR IRFP460 MOSFET and Germany IXYS Company DSEI60-06A rapid recovery diode. The high power capacitor C and inductor coil L compose current-mode parallel upper-voltage resonance circuit, which doesn’t need output transformer. Thus, it not only improves the efficiency, but also increases the reliability of the welder.
The Solid State High Frequency Welding Machine is consists of: DC Power Unit, Inverter Unit, Central Control Unit, Water-water cooling system and the transformer.
A high efficiency rating of 85% to meet the ever increasing worldwide electrical energy standards.
Full power output over wide range of product sizes.
Comes with an operator friendly control system that enables the user and production engineers to tailor weld parameters to their products and mill.
Optimal HF weld parameters can be stored for future runs. Recipe recall ensures quality product is produced, turn to turn.
Equipped with Speed Power Control giving the operator the tools that are needed to start, stop and jog the mill while welding – this keeps scrap to a minimum by reducing open seam.
Allows for selecting both the precise power and frequency settings to successfully produce the best weld on any tube or pipe mill with virtually any material type.
Machine Features
The main features of Solid State High Frequency Welding Machine as following:
Simple Circuit and flexible installation
Using series-parallel complex resonance circuit, the power only needs to connect main circuit cable between rectifier power supply and the transformer and inverter unit. The installation only needs 2-3 days under good support of the user.
Complete protection and easy maintenance
Equipment has perfect failure alarm and fault display system. Once there is a failure, the LCD can show the fault location clearly,
so that maintenance personnel can quickly find out the cause of the failure and troubleshoot.
Small harmonic interference, no pollution to the power grid
With the transformer, RC and LC filter network, the harmonic of solid state H.F welder is small.
When solid state H.F welder operates at full power, the power factor can reach 0.9 or more.
High efficiency, power saving and less cooling water
Compared with the vacuum tube welder, the solid state H.F can save 25%-30% power.
It doesn’t’ need reservoir for out water, thus, the cooling water consumption reduces by 70%.
Less welding spatter, good welding quality
The power supply waveform of solid state H.F is stable, and the steel tube weld tends to be a straight line. The tests of drawing, flattening, flaring, water pressure and other performance are qualified.
Packing Details
We adopts the strong seaworthy package to protect the machine.

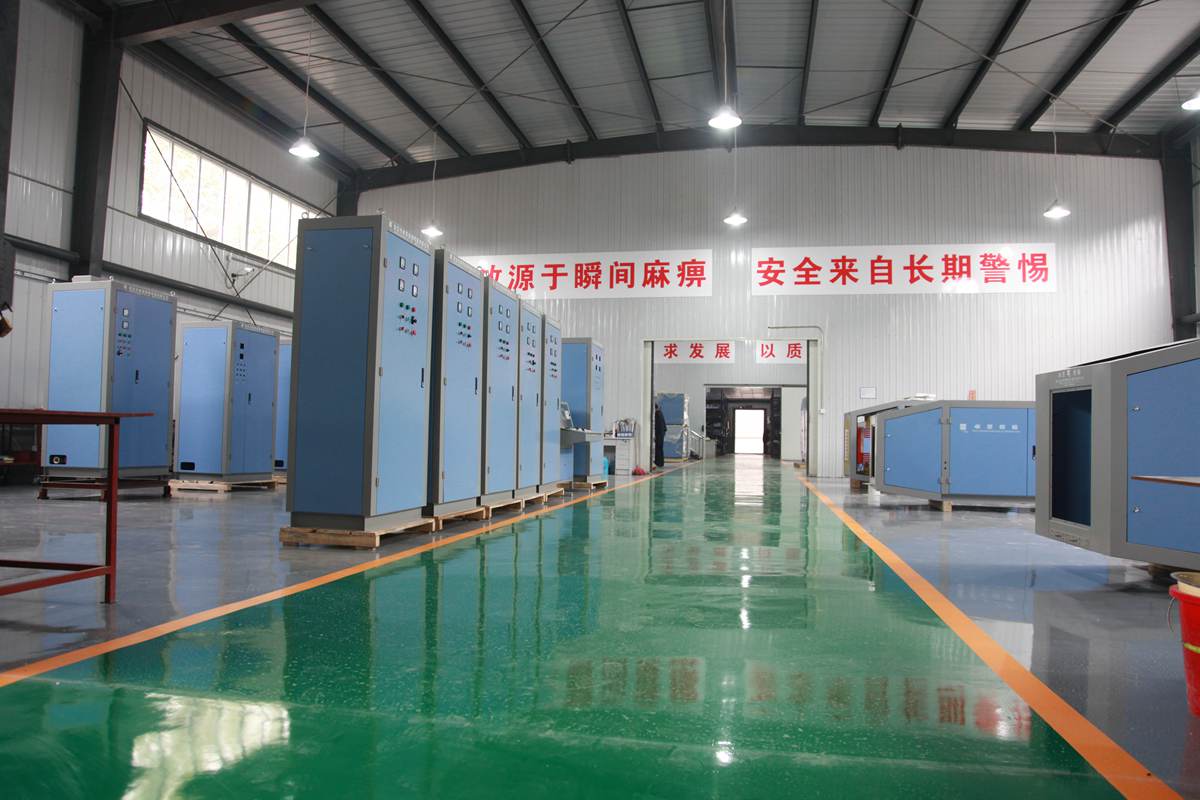

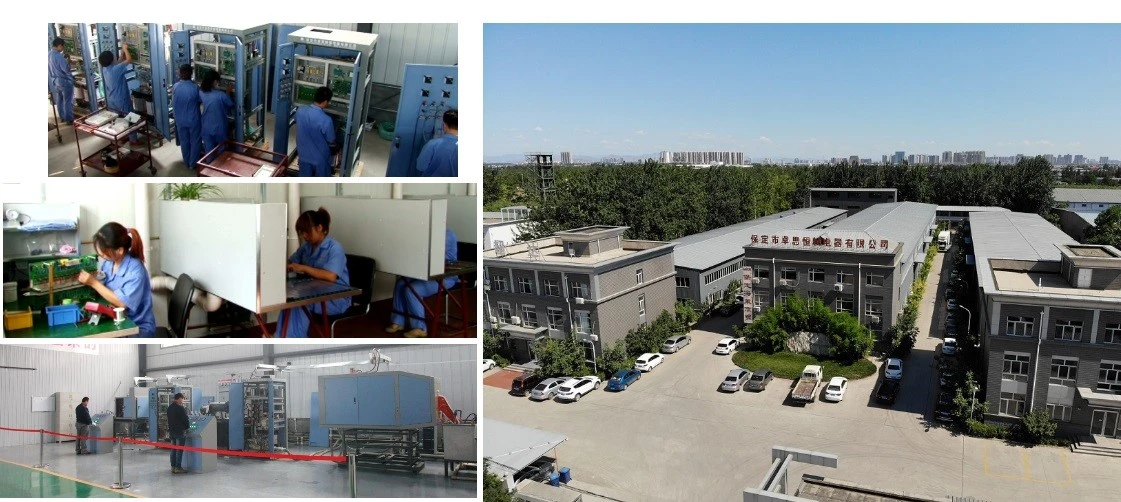

Company Introduction
ZSHC company is a global supplier with manufacturing, service, and research centers to support its broad customer base. ZSHC is built on the quality of our engineering and the strength of our service. As a global induction heating and welding manufacturer specializing in tube and pipe welders, ZSHC provides the widest range of HF Welders available. All of our welders are based on the High Frequency or “HF” welding process. our welding equipment range gives you the capability to successfully weld almost any metal you want – efficiently and economically. We supply equipment needed to weld carbon and stainless steel, brass, copper, and aluminum, as well as exotic alloys, such as boron steel and HSLA, AHSS, and Trip Steels.
Our Service
1. Field Commissioning
The seller would send one technical engineer to the equipment worksite to commissioning the Solid State H.F welder.
2. Online Commissioning for Free
We can commissioning the welding machine online, service for free. Can ensure the machine running sucessfully within 1-2days,
save cost for customer.
3. Connection Cables
We can offer the connection cables for the welding machine connection.According to the customer's site layout.
4. One Year Warranty Period
12 months from the date of the equipment is qualified to be commissioned by the Seller’s technician at the Buyer’s site. Or 18 months from the date of the equipment leaves the factory of the seller, which first comes, first serves.
5.Sufficient spare parts inventory
We provide the spare parts for the life-long usage of the welding machine. As long as the welding machine is running at site, we can offer the spare parts needed any time. No matter how old the machine is.
6. Provide 7days/week full response service.
We can full response your requests even on holidays and even have big time difference between us.
7. On line Technical Support for free
When the welding machine has any faults, we can offer sevice online, guide operator to solve it and no service charge.
8. Pick up Service for Visiting
When customer visit us, we can pick up the visitors at nearest airport, railway staion or hotel.
We can help to booking the hotel and tickets during the visiting period.
If customer need visit some famous places near us, we can be the guide.
